Telehender MAGNi TH 6.20

19.20m

6.000kg

Ne

14,50m

Download

The TH 6.20 is a fixed telescopic handler particularly suited for demanding work sites. It can safely reach a height of 19.20 meters on rough terrain, thanks to its four-wheel drive and automatic leveling system, which acts on both the wheels and stabilizers. The hydrostatic transmission provides precision and maneuverability.

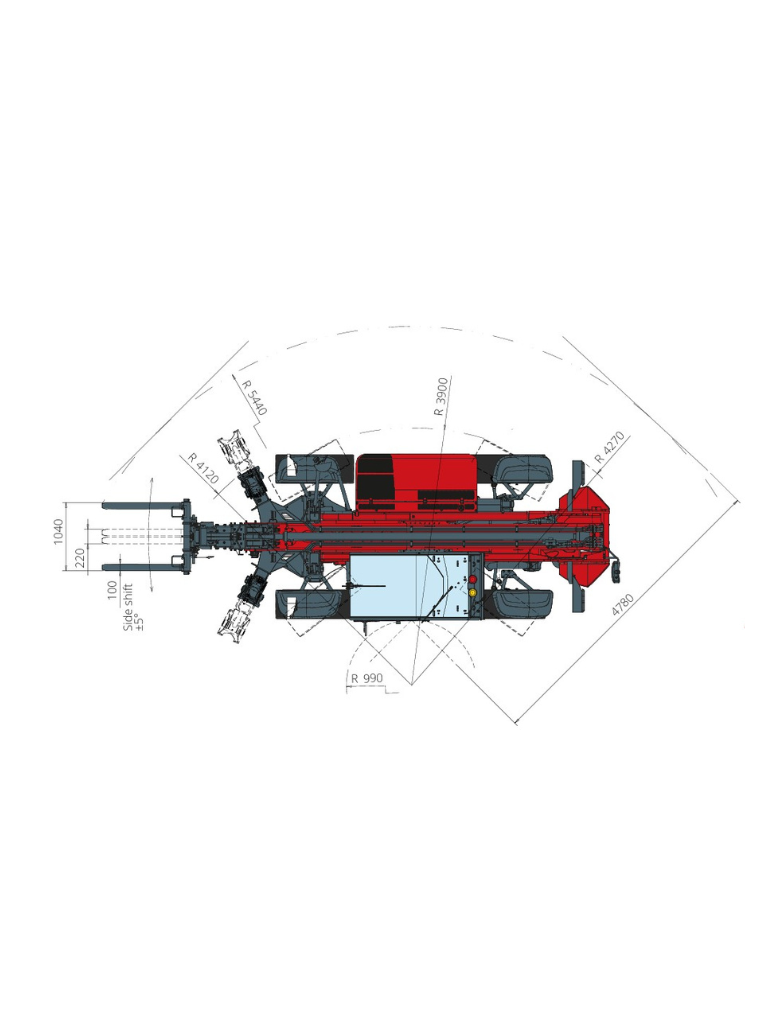

This machine is compatible with a wide range of attachments and is equipped with an R.F.I.D system that enables automatic recognition of attachments and creation of relative load charts. The TH 6.20 comes standard with a side-shift system, which allows for lateral shifting of the rear part of the chassis and boom around the machine’s longitudinal axis, adjusting the load position without moving the unit. This system allows for a shift of +/-5°, corresponding to a shift of +/-1.5 meters when the boom is fully extended, regardless of the attachment.

The TH 6.20 complies with the EN13000 standard and can be equipped with a winch for working with suspended loads.

Additional features:

• Low-profile design for increased stability
• Available with Deutz Stage V / Stage IV final / Stage IIIA engines
• Standard rotating stabilizers for optimized lifting capacity up to 5.5 tons
• 350 bar L/S hydraulic system
